Docker nginx安装与配置挂载并实现负载均衡

  • 在Docker下载Nginx镜像

    docker pull nginx

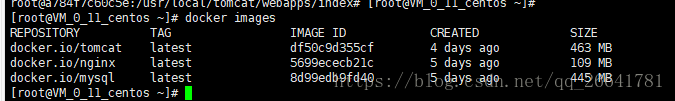

    docker images

这里写图片描述

  • 创建挂载目录

    mkdir -p /data/nginx/{conf,conf.d,html,logs}

这里写图片描述

  • 编写nginx,conf配置文件，并放在文件夹中

    For more information on configuration, see:

    * Official English Documentation: http://nginx.org/en/docs/

    * Official Russian Documentation: http://nginx.org/ru/docs/

    user nginx;
    worker_processes auto;
    error_log /var/log/nginx/error.log;
    pid /run/nginx.pid;

    Load dynamic modules. See /usr/share/nginx/README.dynamic.

    include /usr/share/nginx/modules/*.conf;

    events {
    worker_connections 1024;
    }

    http {
    log_format main ‘$remote_addr - $remote_user [$time_local] “$request” ‘
    ‘$status $body_bytes_sent “$http_referer” ‘
    ‘“$http_user_agent” “$http_x_forwarded_for”‘;

    access_log /var/log/nginx/access.log main;

    sendfile on;
    tcp_nopush on;
    tcp_nodelay on;
    keepalive_timeout 65;
    types_hash_max_size 2048;

    include /etc/nginx/mime.types;
    default_type application/octet-stream;

    # Load modular configuration files from the /etc/nginx/conf.d directory.
    # See http://nginx.org/en/docs/ngx_core_module.html#include
    # for more information.
    include /etc/nginx/conf.d/.conf;

    server {
    listen 80 default_server;
    listen [::]:80 default_server;
    server_name 182.254.161.54;
    root /usr/share/nginx/html;

    # Load configuration files for the default server block.
    include /etc/nginx/default.d/    .conf;

    location / {
    proxy_pass http://pic;
    }

    error_page 404 /404.html;
    location = /40x.html {
    }

    error_page 500 502 503 504 /50x.html;
    location = /50x.html {
    }
    }

    upstream pic{
    server 182.254.161.54:8088 weight=5;
    server 182.254.161.54:8089 weight=5;
    }
    }

  • 启动容器

    docker run –name mynginx -d -p 82:80 -v /data/nginx/conf/nginx.conf:/etc/nginx/nginx.conf -v /data/nginx/logs:/var/log/nginx -d docker.io/nginx

  • 查看启动的容器

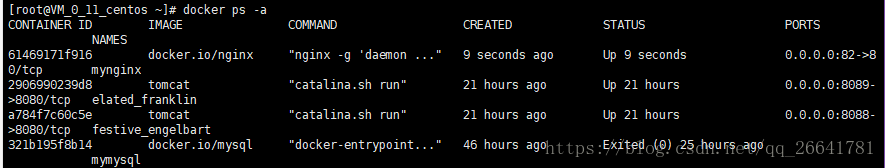

    docker ps

这里写图片描述

  • 先前已经在Docker部署两个tomcat，一个是8088端口，另一个是8089端口，并进入两个容器里编写了简单的页面

这里写图片描述

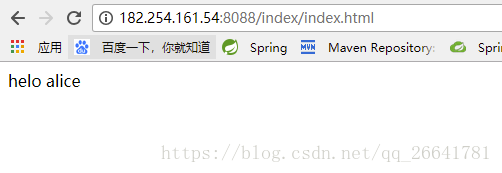

访问8088端口
这里写图片描述

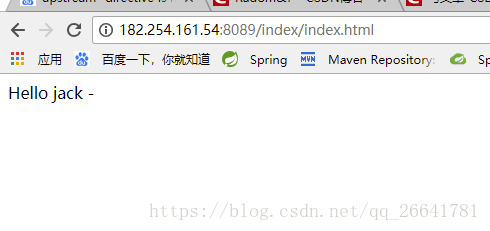

访问8089端口
这里写图片描述

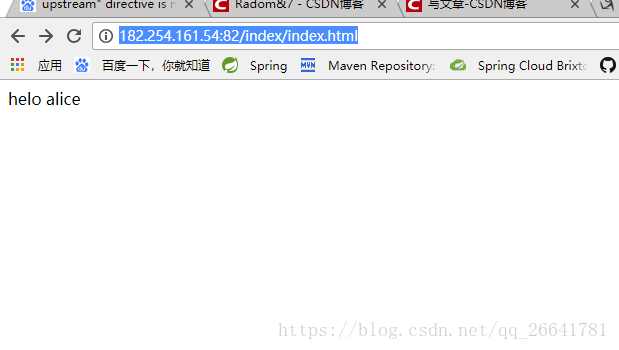

  • 现在通过Nginx访问两个tomcat的内容，实现负载均衡的功能，出于区别，更能体现负载均衡的功能，两个页面的内容不一样，但是访问路径都一样，只是通过Nginx反向代理去轮换访问

这里写图片描述

这里写图片描述
